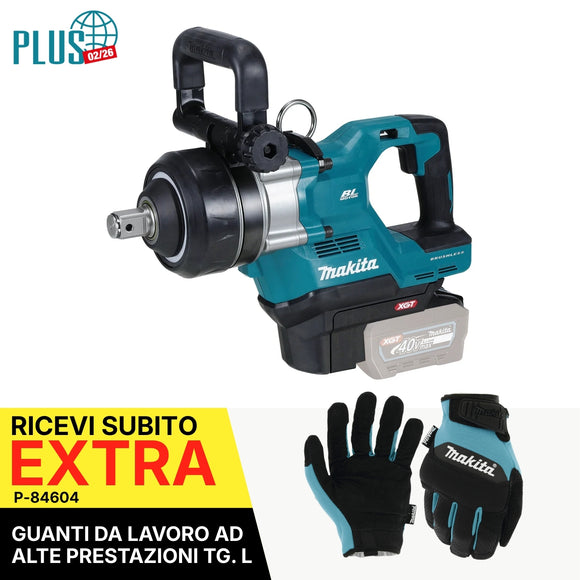

Impact wrench 1" 3150Nm 40V XGT BL Makita TW009GZ01

SKU: TW009GZ01

The Makita TW009GZ01 is a professional 40V XGT impact wrench designed to tackle the most demanding applications , offering extremely high torque of up to 3,150 Nm in a compact and extremely robust body. Thanks to XGT technology and the powerful brushless motor , this machine represents a valid alternative to pneumatic wrenches , guaranteeing constant performance, reliability and maximum freedom of movement. Supplied without batteries and charger.

The vertically positioned motor design reduces overall length and limits reaction force on the operator's hand, improving comfort and control even during prolonged use. The 1" short anvil , combined with the 360° adjustable side handle , makes the TW009GZ01 ideal for demanding jobs in machine shops, structural construction, railway maintenance and on agricultural or industrial vehicles .

The 4-stage electronic power selection , combined with 3 Bolt modes with Auto Stop function , allows precise control both when screwing and unscrewing, protecting bolts, materials and the operator. The LED ring lighting ensures optimal visibility, reducing shadows on the work area, while the anti-vibration and XPT protection structure guarantees resistance even in harsh environments.

Main features Technical Specifications
  • Makita TW009GZ01, XGT 40V ultra-high torque impact wrench
  • Brushless motormaintenance-free and long-lasting
  • Maximum tightening torque up to 3,150 Nm
  • Maximum unscrewing torque up to 4,000 Nm
  • 4-stage electronic power selection
  • 3 Bolt Modeswith functionAuto Stopin screwing and unscrewing
  • Variable speedwith maximum speed mode
  • 1" square drivewith short anvil
  • 360° adjustable and tiltable side handlewithout tools
  • Double LED Ringwith preglow and afterglow for uniform illumination
  • XPT, increased resistance to dust and water
  • Battery protection systemagainst overload and deep discharge
  • Platform:XGT
  • Rated voltage:40 V
  • No-load speed:0 – 600 / 700 / 850 / 1,200 min⁻¹
  • Screwing torque (max):600 / 1,000 / 1,600 / 3,150 Nm
  • Unscrewing torque (max):4,000 Nm
  • Pulses per minute:0 – 1,200 / 1,300 / 1,500 / 1,750 min⁻¹
  • Standard bolt capacity:M27 – M45
  • High strength bolt capacity:M20 – M33
  • Sound pressure level:101 dB(A)
  • Sound power level:109 dB(A)
  • Max vibrations:37.5 m/s²
  • Net weight:9.9 kg
  • Weight with battery:10.8 – 11.8 kg
  • Product dimensions:435 x 135 x 276 mm
